Accessories for Rhizons

Introduction

Rhizon soil moisture samplers need a vacuum to sample water. To this purpose, you can use either vacuum tubes with needles and a connector, or a syringe made of isoprene latex with a wooden container to hold the vacuum.

Furthermore for field experiments, extension tubing might be useful.

For special purposes, like the insertion of MacroRhizons, we have special equipment.

If you have any questions, please contact us., We can advise you on the accessories that suit best to your experiments. Also we develop customized Rhizons and tubing sets.

Accessories and equipment for sampling

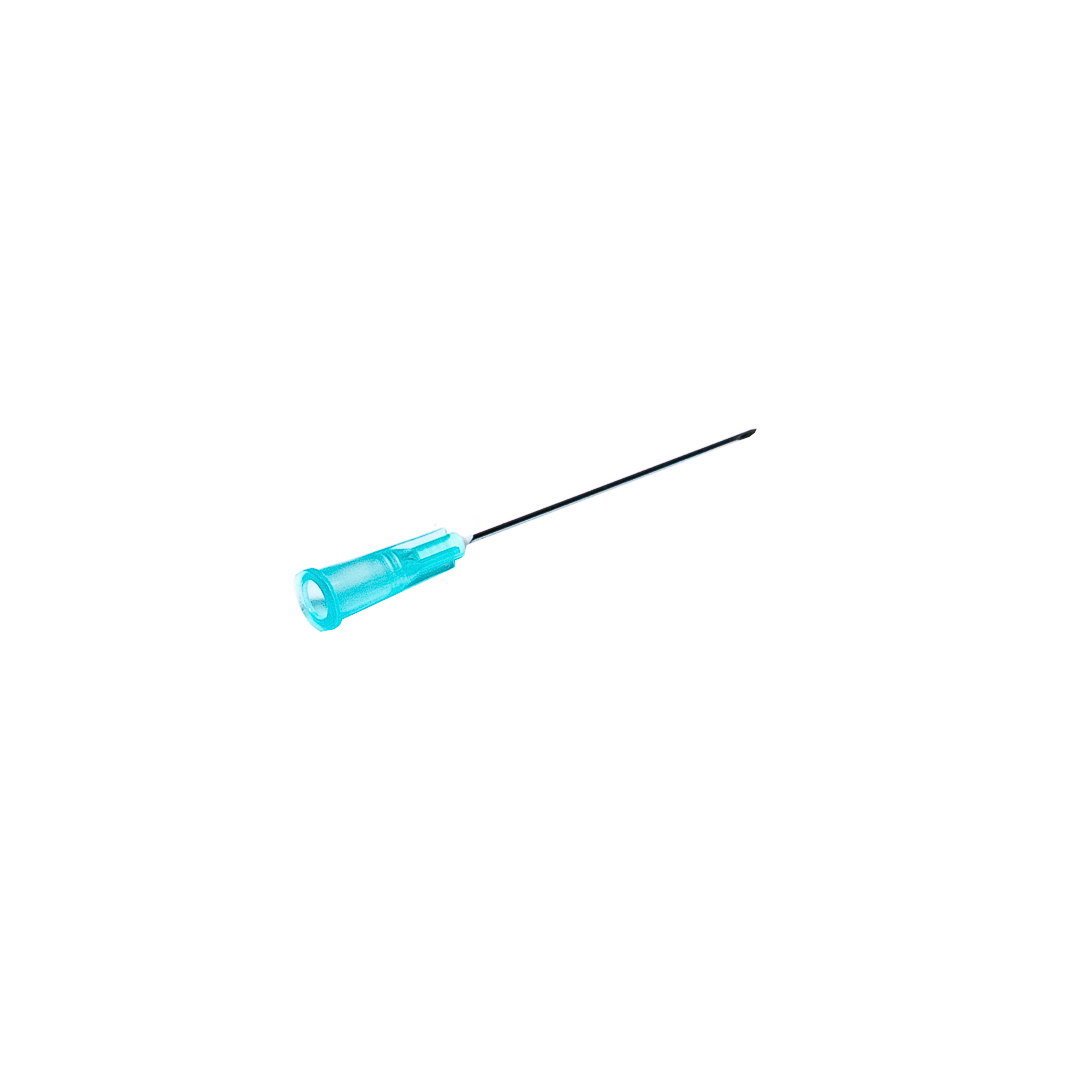

19.21.02          Needles, 40 mm, diameter 0.8 mm, with protecting cap

19.21.03          Vacuum tubes, plastic, 9 ml, package of 50 tubes

19.21.04          10 ml luer lock syringe + luer lock connector 2*female + wooden retainer 7 cm

19.21.09.7       Wooden retainer for syringe 10 ml, 7 cm

19.21.09.10     Wooden retainer for syringe 30 ml, 10 cm

19.21.10          luer lock connector 2*female + wooden retainer 7 cm

19.21.13          Silicone tubing 6*2 mm (+ guide wire), slips over and seals tubing
                       outside diameter 2.5-3.2 mm, 1 m for about 30 connections

19.21.14          PE Extension tubing, semi rigid, black, 3.2 *1.0 mm

19.21.16          PVC/PE extension tubing, flexible, transparent, 2.5 * 1.0 mm

19.21.17          Silicone tubing 6*4 mm, 1 m. Seals Rhizon MOM watertight in holes 5.5 mm,
                       slip 1-2 cm over connection porous-PVC/PE  tubing

19.21.18          Luer lock stopcock, 2 way. For sampler flushing without vacuum loss.

19.21.19          Luer lock stopcock, 3 way. For sampler flushing and removal of O₂.

19.21.41          1 m PVC pipe 5/8 " + connector (to be glued)

19.21.42          0.5 m  PVC pipe 5/8 " + connector (to be glued)

19.21.44          1 m extension tubing PVC/PE with luer lock connectors

19.21.45          0.5 m extension tubing PVC/PE with luer lock connectors

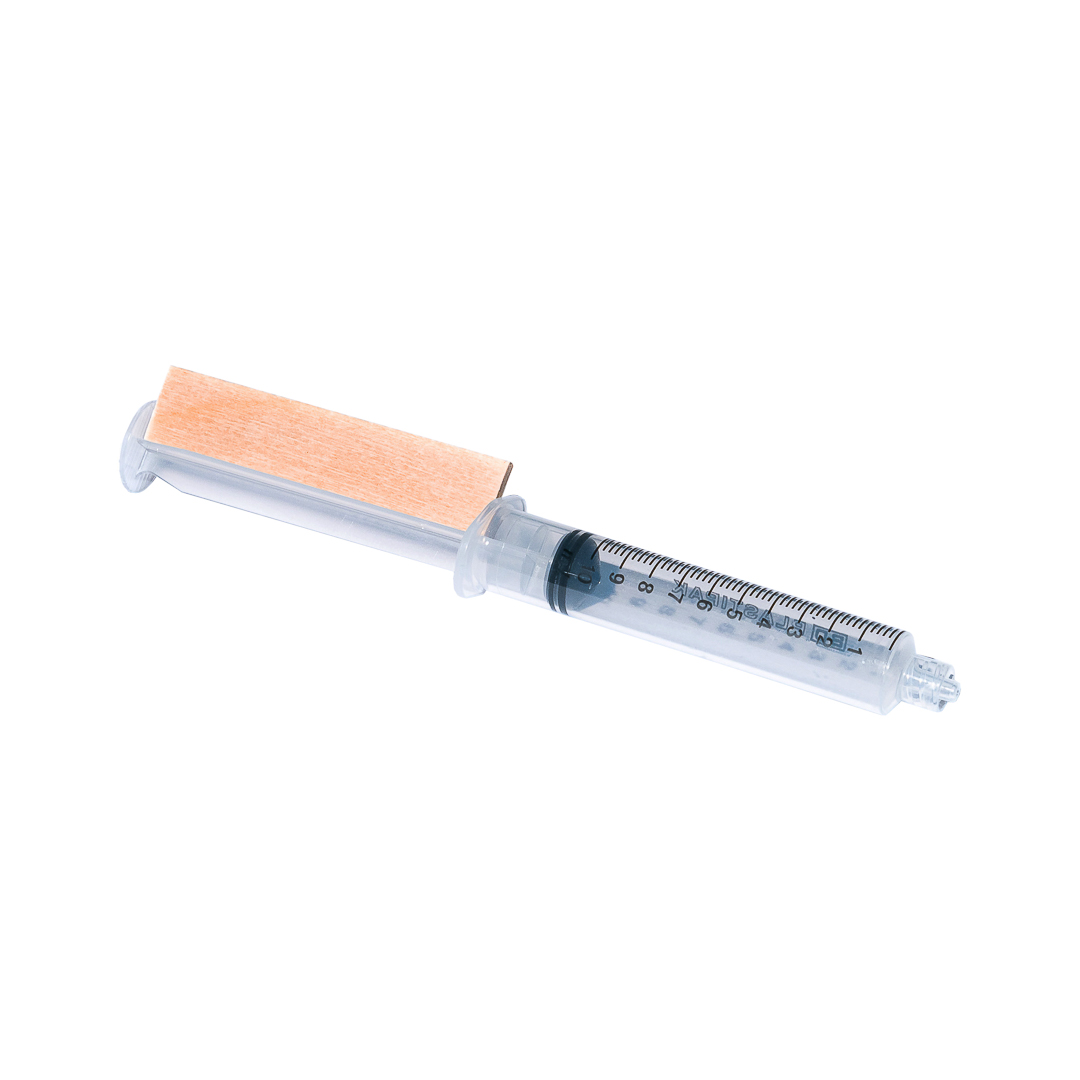

19.21.48          10 ml Syringe PP with wooden retainer 7 cm

19.21.49          30 ml Syringe PP with wooden retainer 10 cm

19.21.51          Insertion tool MacroRhizon, 4 mm diameter SS pin, 10 cm,
                       supplied with 1 m PVC pipe

19.21.55          MacroRhizon Cup Driver, to screw/unscrew MacroRhizon Cups (art 19.21.37)
